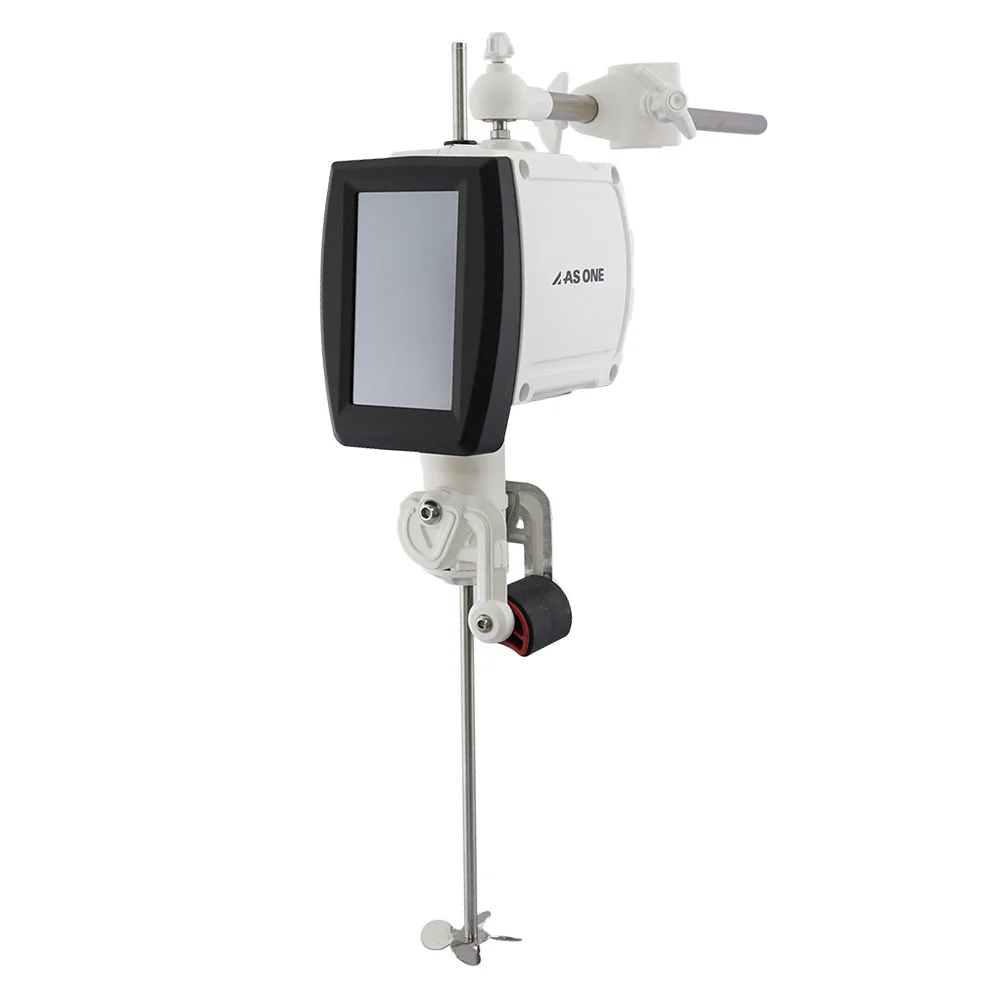

Máy khuấy PST-101 AS ONE
- Thương hiệu: AS ONE
- Mã sản phẩm: 4-2087-01
- Quy cách (Đóng gói): 1 piece
- Giá nhà sản xuất: 17,640,000 ¥
Đặc tính và thông số kỹ thuật
Standard Type
Rotation speed (rpm): 50 to 3000
Maximum torque (N・m): 0.173
Control software: None
Rotation control: Feedback control using a brushless motor
Motor: DC brushless motor 50W (Class B insulation)
Safety features: Thermal protector, current limiting circuit, chuck lever interlocking fail-safe function
Functions: Forward/reverse switching function, ON/OFF timer function
Chuck: Lever type chuck
Power supply: Dedicated AC adapter (AC100-240V⇒DC24V5A) AC⇔Adapter⇔DC: Approx. 1.5m
Power consumption: 100W
Size (main body): 136 x 175 x 242 mm
Material: ABS resin/aluminum/SUS304, etc.
Weight (body): Approx. 3kg
Accessories: Propeller-type stirring blade (60 mm), stirring blade fixing nut, stirring rod (φ8 x 500 mm), arm holder, arm bar
*Stand is not included.
*Only Φ8mm shaft diameter is available. Collets for chucks of the Tornado series (AS ONE product numbers: 1-5507-02, 1-5507-03) cannot be used with the Tornado N series.
