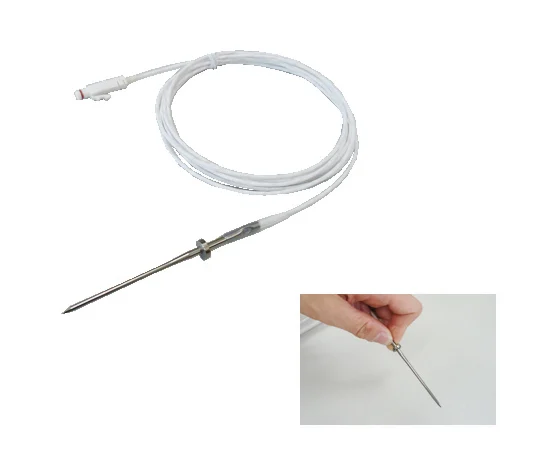

Cảm biến nhiệt độ TR-5420 T&D
- Thương hiệu: AS ONE
- Mã sản phẩm: 61-8494-05
- Quy cách (Đóng gói): 1 piece
- Giá nhà sản xuất: 1,650,000 ¥
Đặc tính và thông số kỹ thuật
Compatible models: TR-52, TR-52S, TR-52i, RTR-52A, RTR-502
Material: Tip: Stainless steel pipe (SUS316), Switching part: Fluorine resin (shrinkable tube), Wiring: Fluorine resin (coated wire)
Cable length: 2m
90% response: In air/approx. 90 seconds, in stirred water/approx. 3 seconds
Measurement temperature range: -60 to 155°C
Sensor heat resistance temperature: -70 to 180°C
Waterproof performance: Only the protective tube is submersible, other parts are waterproof
Measurement temperature accuracy:
Average ±0.3℃ (-20~80℃)
Average ±0.5℃ (-40~-20℃/80~110℃)
Average ±1.0℃ (-60~-40℃/110~155℃)
