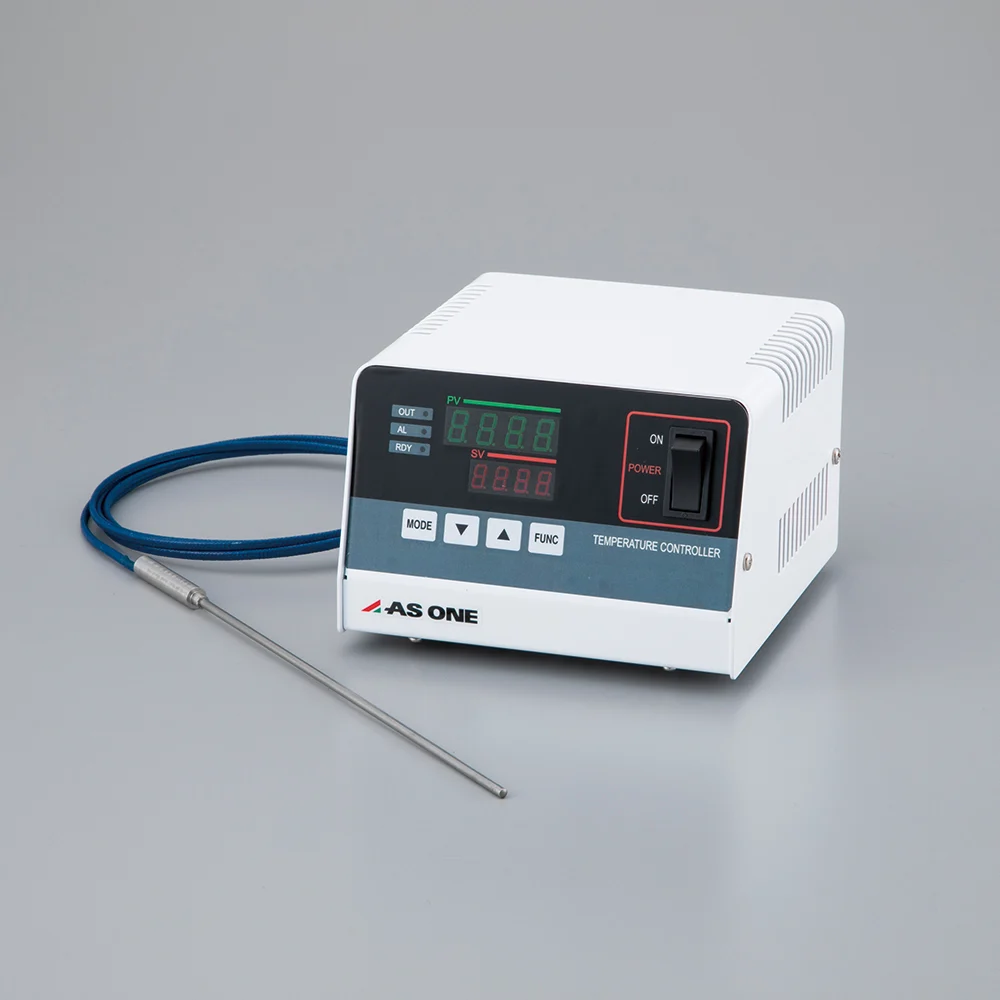

Bộ điều khiển nhiệt độ TS-KG AS ONE
- Thương hiệu: AS ONE
- Mã sản phẩm: 1-5719-22
- Quy cách (Đóng gói): 1 piece
- Giá nhà sản xuất: 11,616,000 ¥
Đặc tính và thông số kỹ thuật
Setting range (°C): 0 to 999*
Minimum display unit (°C): 1
Quantity: 1 piece
Sensor sheath material: SUS316
Sensor dimensions: Φ3.2 × 200mm
Cable length: 2m
Safety feature: Overheat protection relay
Temperature control accuracy: ±0.3%FS±1digit
Temperature control: PID control (auto-tuning, SSR method)
Included sensor: K-type thermocouple
External dimensions: 135 x 145 x 95 mm
Power supply: AC100~200V 50/60Hz 15A
Connection capacity: Maximum resistive load 15A
Terminal size: M4
Accessories: 100V power cord with 3-prong plug, 200V power cord + ground wire, temperature sensor, ground wire. *The single-phase 200V version does not come with a power plug.
*When using the included K-type thermocouple sensor, the measurement range is 0 to 750°C.
*Please install the device so that the temperature of the sleeve area is below 100°C.
