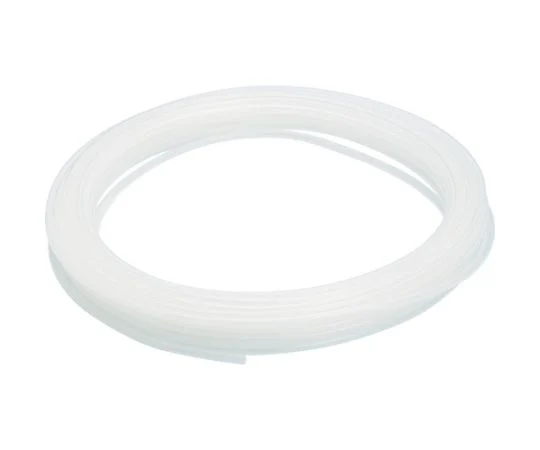

Ống dẫn khí UB0425-100-W Pisco
- Thương hiệu: Pisco
- Mã sản phẩm: 62-2627-14
- Quy cách (Đóng gói): 1 roll
- Giá nhà sản xuất: 1,050,000 ¥
Đặc tính và thông số kỹ thuật
Color: Milk White
Outer diameter (mm): 4
Inner diameter (mm): 2.5
Minimum bending radius (mm): 10
Total length (m): 100
Fluids used: air, water (conditions apply)
Vacuum pressure used (MPa): -0.1
Total length (mm): 100
Maximum operating pressure: 1.0 MPa (at 20°C and 65% RH)
Vacuum pressure used: -100kPa
Operating temperature range: -20 to 70°C (no freezing) for air, -15 to 60°C (no freezing) for water
Positive List Compliant (Food Sanitation Act Not Compliant)
Material/Finish: TPU (Thermoplastic Polyurethane)
Do not apply loads such as tension, twisting, or extreme bending to the tubing, as this may cause the tubing to collapse, burst, or come loose.
Do not scratch or tangle the tube, as this may cause the tube to burst.
The tube’s bursting pressure decreases as the temperature rises, so be sure to understand the operating pressure and ensure that you have a sufficient safety margin.
Use the tube with a minimum bending radius or greater.
When piping the tubes, leave enough slack to allow for changes in length, etc.
Country of Origin: Japan
Code number: 818-2300
