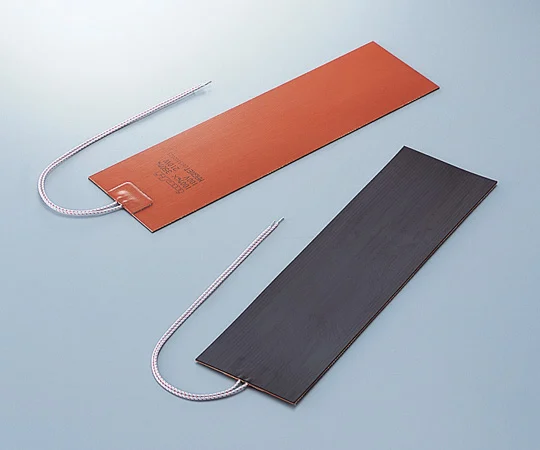

Miếng gia nhiệt OM Heater
- Thương hiệu: OMRON
- Mã sản phẩm: Không áp dụng
- Quy cách (Đóng gói): 1 pieces
- Giá nhà sản xuất: 1,850,000 ¥
Đặc tính và thông số kỹ thuật
Operating temperature: Normal temperature/200℃, maximum temperature/250℃
Rated voltage: AC100V
Capacity Tolerance: ±10%
Power density: 0.5W/cm2 (AC100V)
Insulation resistance: 100MΩ or more/DC500V
Withstand voltage: 1500V/1min
Lead wire length: 300mm
Magnetizing force: 0.04T
Thickness: 1.5mm
*Please use in close contact with the object to be heated.
*This product is not temperature-controlled, so please install a temperature controller or similar device depending on the situation and use it to ensure that the surface temperature remains below 200°C.
*This product is not waterproof. Do not immerse the product directly in liquid.
*We can also manufacture custom-made products (dimensions, shapes, capacity, etc.). Please contact us.
RoHS2 (EU)2015/863 compliant
Package size: 225×370×15 mm 70 g
