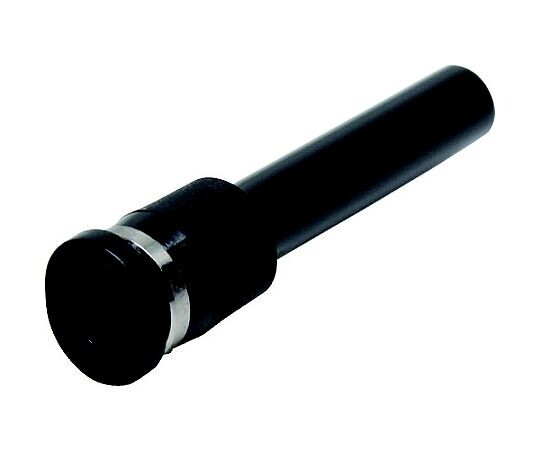

Đầu nối PGJ4-3M Pisco
- Thương hiệu: Pisco
- Mã sản phẩm: 61-1910-96
- Quy cách (Đóng gói): 1 piece
- Giá nhà sản xuất: 62,000 ¥
Đặc tính và thông số kỹ thuật
Suitable tube outer diameter D1 (mm): 3
Compatible fitting size D2 (mm): 4
Maximum operating pressure (MPa): 1.0
Fluid used: Air
Operating pressure: -100kPa to 1.0MPa
Operating temperature range (°C): 0 to 60 (no freezing)
Shape: Reducer Mini Type
Color: Release ring: Black, Resin body: Black
Compatible tube outer diameter (one-touch side): 3
Applicable fitting diameter (nipple side): 4
Operating temperature range: 0 to 60°C (no freezing)
Maximum operating pressure: 1 MPa
Operating vacuum pressure: -100kPa
Material/Finish: Body/Brass + electroless nickel plating + polybutylene terephthalate (PBT), Seal rubber/Nitrile rubber (NBR), Release ring/POM, Locking claw/SUS
Country of origin: Japan
Code number: 442-6975
